Chrome Ore Spiral Washing Plant
A Chrome Ore Spiral Washing Plant is used to process chromite ore and separate valuable heavy minerals from lighter waste material. In many cases, chrome ore contains clay, slime, and mixed particles that must be washed and classified before the material can be upgraded effectively. This article explains how a chrome ore spiral washing plant works, what equipment is typically used, and how to improve recovery and product quality in a chromite beneficiation circuit.
How a Chrome Ore Spiral Washing Plant Works?
A spiral washing plant usually combines washing, screening, and gravity separation. The general process may look like this:
- Raw chrome ore is fed into a washing stage.
- Clay and dirt are removed.
- The material is screened by size.
- The washed ore is fed into spiral concentrators.
- Heavy chromite particles are separated from lighter waste.
- Concentrate and tailings are discharged separately.
The spiral concentrator uses gravity and flow control to separate particles based on density and shape. Chromite, being a heavy mineral, can be concentrated effectively when the feed is properly prepared.
Main Equipment in a Chrome Ore Spiral Washing Plant
A typical plant may include:
- Feed hopper.
- Trommel or washing screen.
- Vibrating screen.

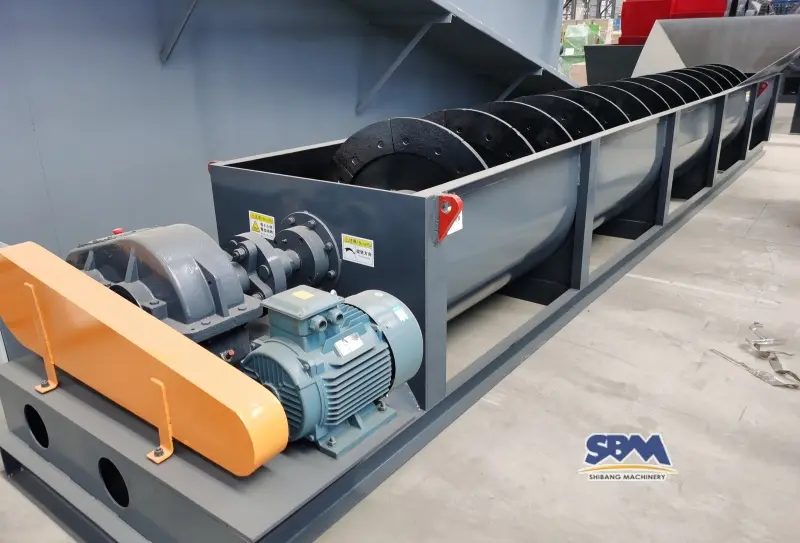

- Screw washer or log washer, if needed.
- Spiral concentrators.
- Pumps and slurry distribution system.
- Dewatering screen or thickener.
- Tailings handling and water recovery system.
The exact layout depends on the ore’s clay content, feed size, and target concentrate grade.
Other crushing equipment you may use:
Why Chrome Ore Needs Washing and Beneficiation?
Chrome ore is rarely ready for sale straight from the mine. It often contains:
- Clay and mud.
- Fine waste particles.
- Mixed grain sizes.
- Unwanted light minerals.
If these impurities are not removed, the recovery rate and product grade can drop significantly. That is why many chrome ore operations use a washing and spiral separation circuit to prepare the ore for further upgrading.
Key Factors That Affect Recovery
Several factors influence how well a chrome ore spiral washing plant performs:
1. Feed preparation
If the ore is not properly washed and sized before the spiral stage, recovery will suffer.
2. Particle size distribution
Spiral separators work best when the feed is within the right size range. Too many large pieces or too many slimes can reduce efficiency.
3. Slurry density
The amount of water in the feed matters. Too thick or too thin a slurry can affect separation performance.
4. Spiral design and adjustment
The angle, pitch, and feed rate on the spiral all influence how heavy minerals move and where they are collected.
5. Water quality and flow
Clean and stable water flow helps maintain consistent separation and product quality.
Common Challenges in Chrome Ore Spiral Washing Plants
Clay and sticky material
Chrome ore with high clay content can clog equipment and reduce recovery.
Excess fines
Very fine particles may be difficult to recover efficiently and can disturb spiral performance.
Water use and recovery
Washing plants require careful water management. Without water recovery, operating cost can rise quickly.
Product consistency
If feed conditions change too much, concentrate grade and recovery can become unstable.
Chrome Ore Spiral Washing vs Simple Washing
| Aspect | Chrome Ore Spiral Washing Plant | Simple Washing Only |
|---|---|---|
| Recovery | Higher | Lower |
| Grade control | Better | Limited |
| Impurity removal | More effective | Less effective |
| Process complexity | Higher | Lower |
| Product value | Higher potential | Lower potential |
For chrome ore operations that want better grade and recovery, spiral washing is usually more effective than washing alone.
How to Improve Performance?
To get better results from a chrome ore spiral washing plant:
- Pre-wash or scrub clay-rich ore before spiral separation.
- Screen material into proper size ranges.
- Control slurry density carefully.
- Maintain a steady feed rate.
- Use dewatering and water recovery systems.
- Monitor concentrate grade and tailings losses regularly.
These practices help improve both recovery and final product quality.
FAQs About Chrome Ore Spiral Washing Plants
1. What is a Chrome Ore Spiral Washing Plant?
It is a plant that washes, screens, and separates chrome ore using spiral concentrators to recover heavy chromite minerals from lighter waste.
2. Why is spiral separation used for chrome ore?
Because chromite is a heavy mineral, spiral concentrators can separate it effectively when the ore is properly washed and sized.
3. What is the biggest problem in chrome ore washing plants?
Clay, slimes, and poor feed preparation are usually the biggest challenges because they reduce spiral efficiency and lower recovery.
